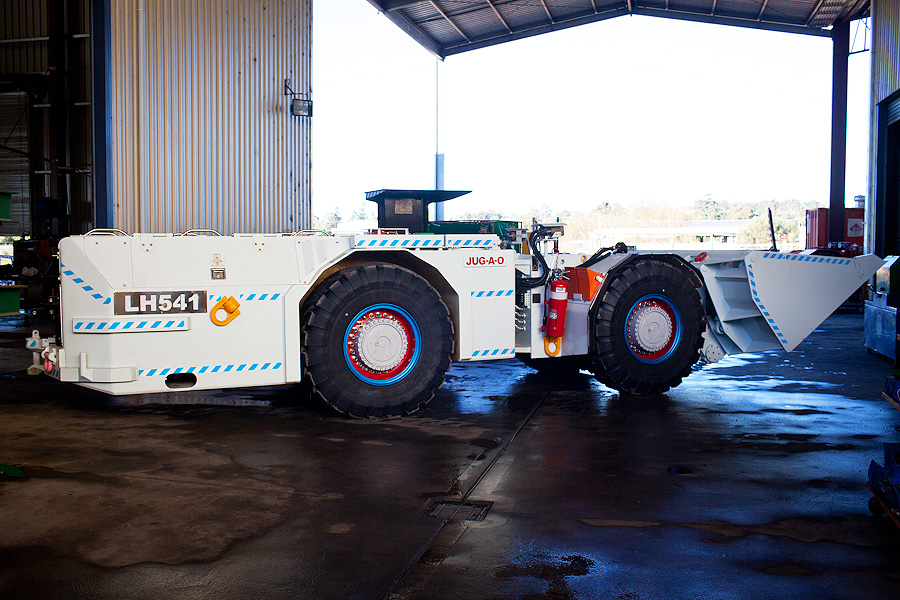

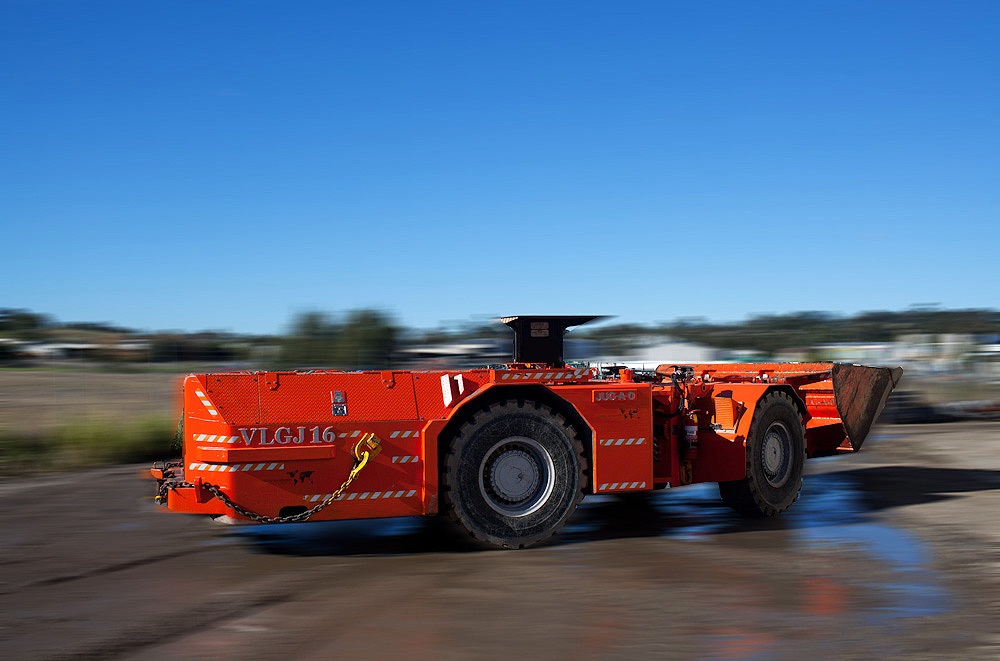

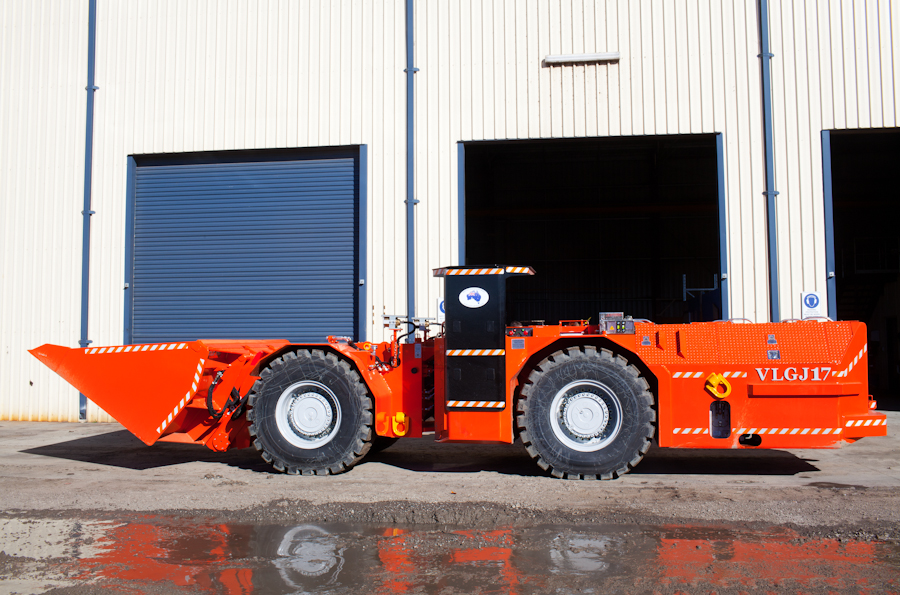

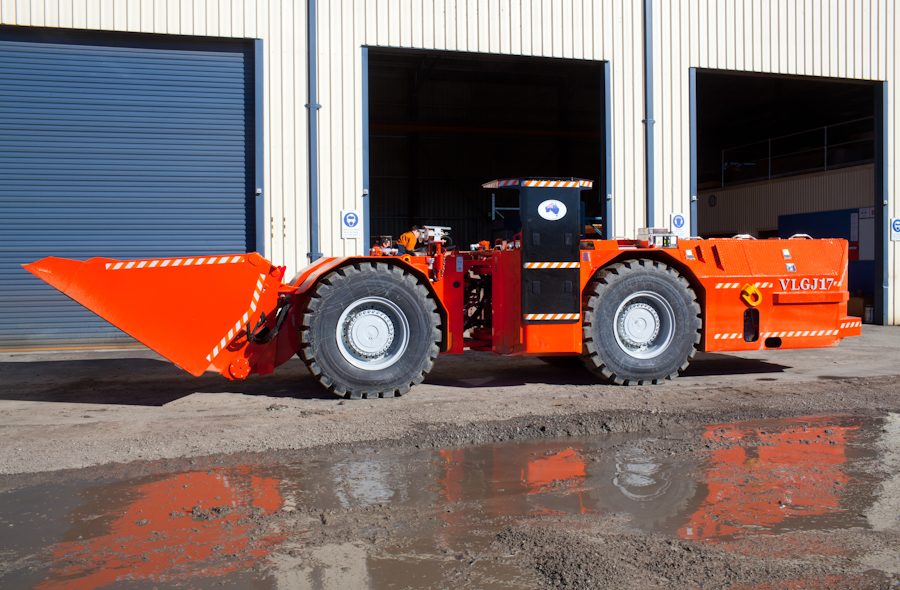

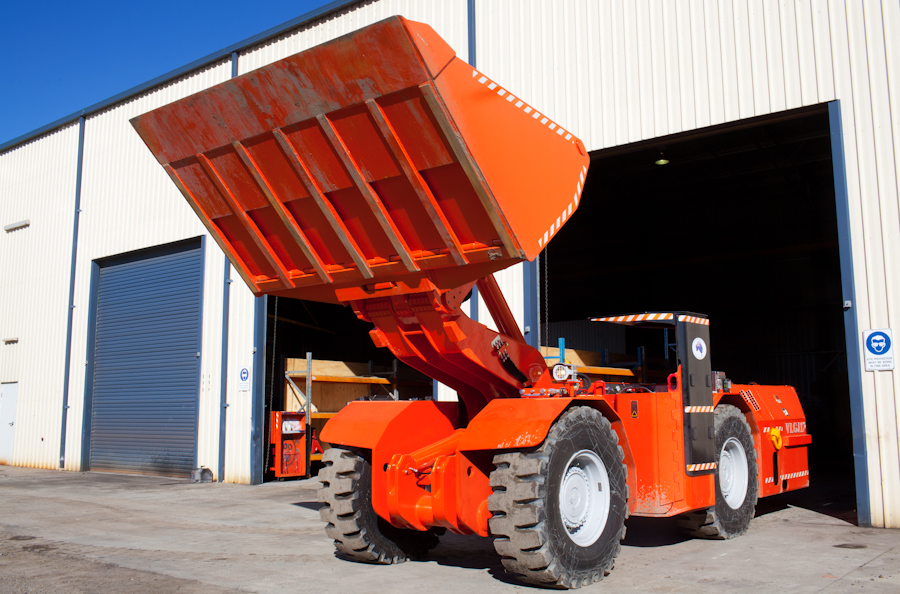

The Jug-A-0 is an explosion protected (AS3584.2), Diesel-powered four-wheel drive LHD Vehicle, powered by an 8 litre super-charged Hino engine with a load sense hydraulic system with lifting capacities of either 10,000kg (Z1060) or 12,000 kg (Z1210).

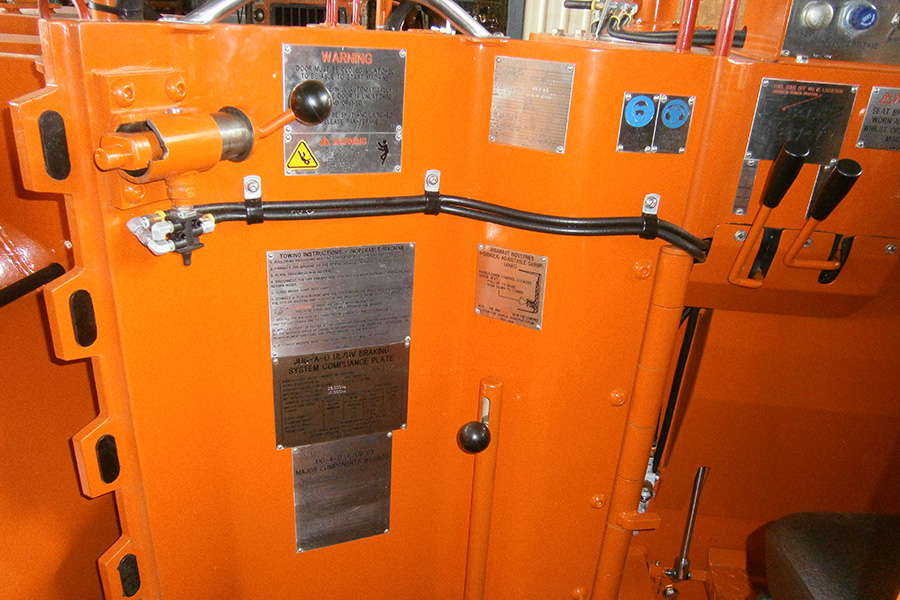

Each version of the Z Series JUG-A-0 is fitted with PPK Mining Equipment’s Registered ExDES and Transport Braking packages.

  • MDR 114991DES
  • MDR 108880 TBS-1

PPK Mining Equipment also supports the V3 version of the 10t and 12T JUG-A-0’s that are fitted with the their approved ExDES engine package

As LHD Vehicles go, the Jug-A-0 is efficiency in motion. Production maximiser, user friendly and importantly maintenance friendly are words often used to describe a JUG-A-0.

The diesel engine incorporates 122kW of power, with 625 Nm of torque. It is also the cleanest and quietest (operating at <85 decibels) diesel engine system on the market, possessing superior.

Operating visibility and incorporating an adjustable hydraulic canopy (ROPS/ FOPS) giving operators the luxury of a standard height range between 1900 and 2200mm.

  • AS2294 certified ROPS/FOPS fixed canopy.
  • Integrated Cabin Door with castle type join between cabin and door.
  • Improved Vison with no canopy posts obstruction of view.
  • Option for Super Low Canopy with 1st Gear Lock out (1700MM)
